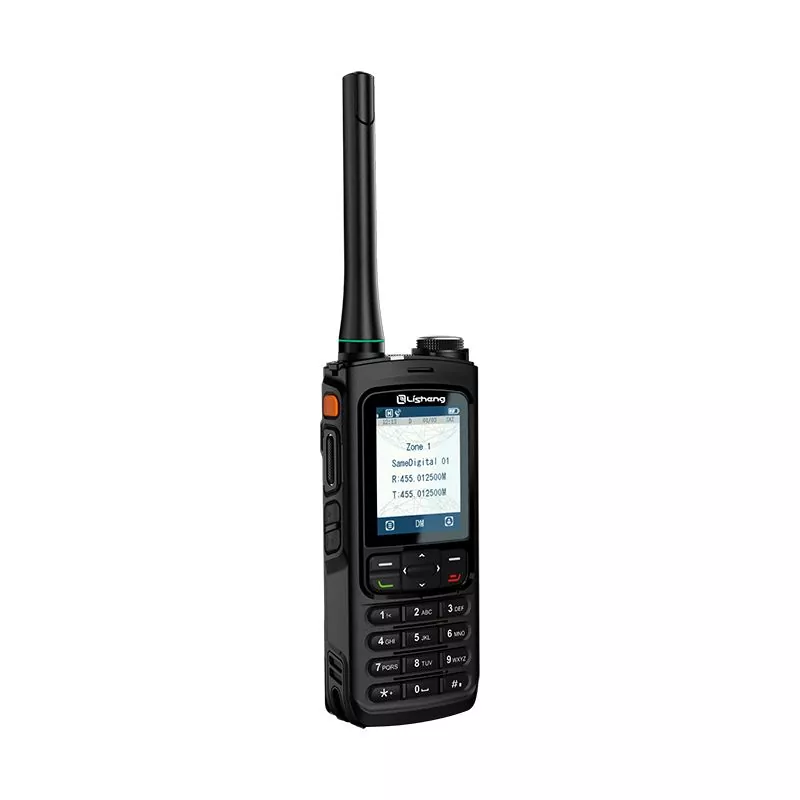

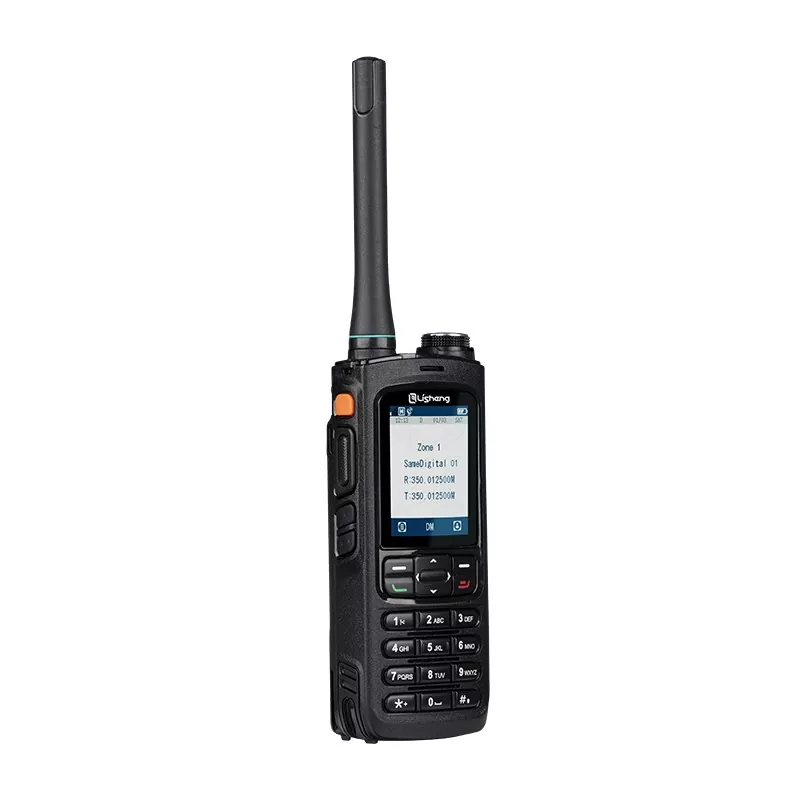

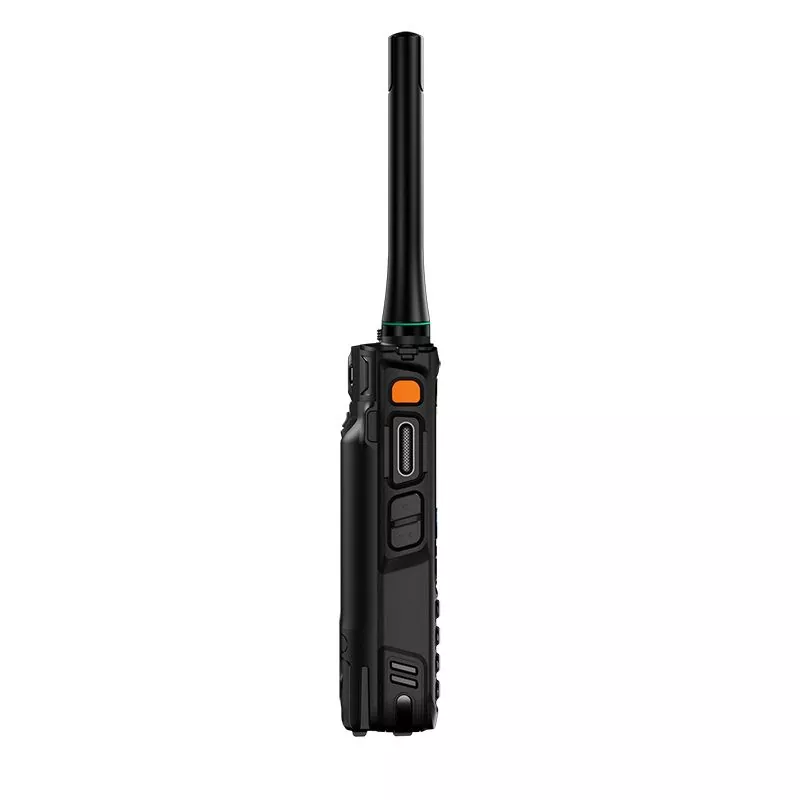

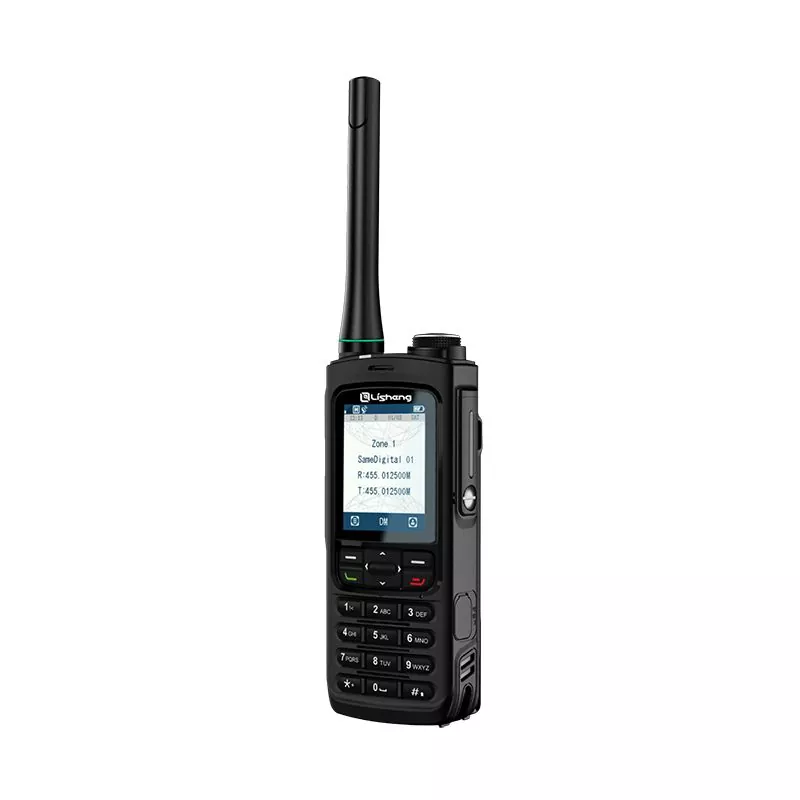

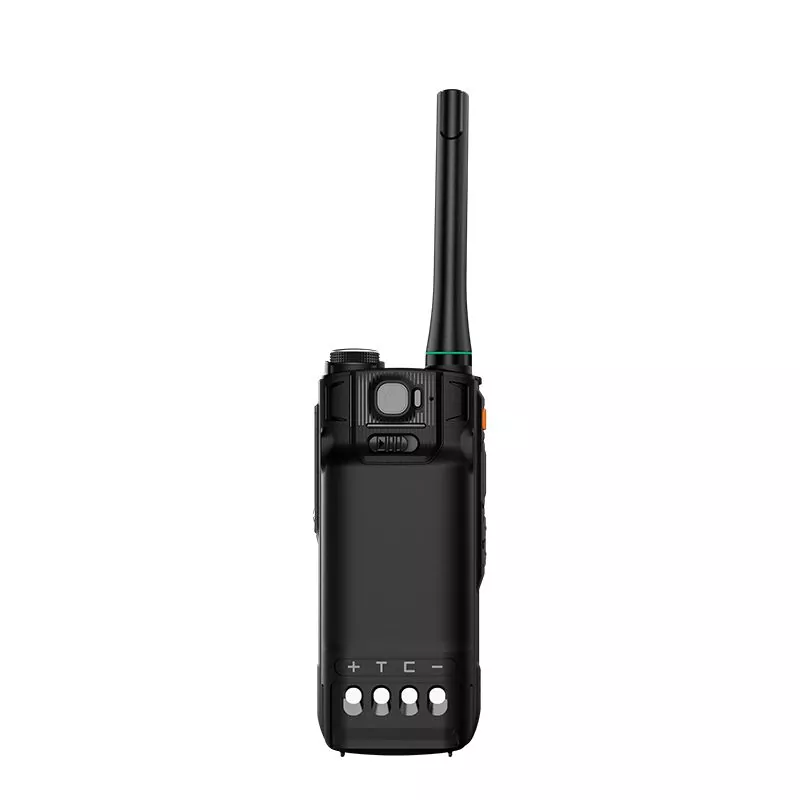

Professional DIGITAL Trunking Radio

Q8088 लाई भेट्नुहोस्, हाम्रो अत्याधुनिक व्यावसायिक डिजिटल ट्रंकिङ रेडियो जसले TDMA प्रोटोकललाई उन्नत फिल्टरिङको साथ प्रयोग गर्दछ, उच्च कभरेज सुनिश्चित गर्दै, कम RF सिग्नल क्षेत्रमा पनि। 12.5KHz साँघुरो ब्यान्ड च्यानल र बलियो त्रुटि सुधारको साथ, Q8088 ले भरपर्दो लामो दूरीको संचार सक्षम गर्दछ। उत्पादन विशिष्टता:

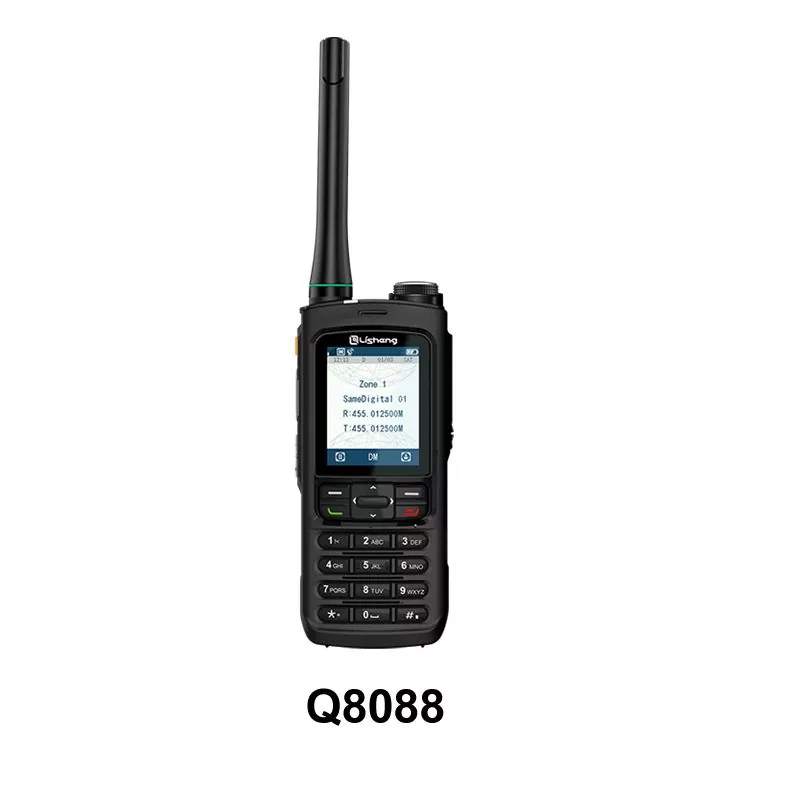

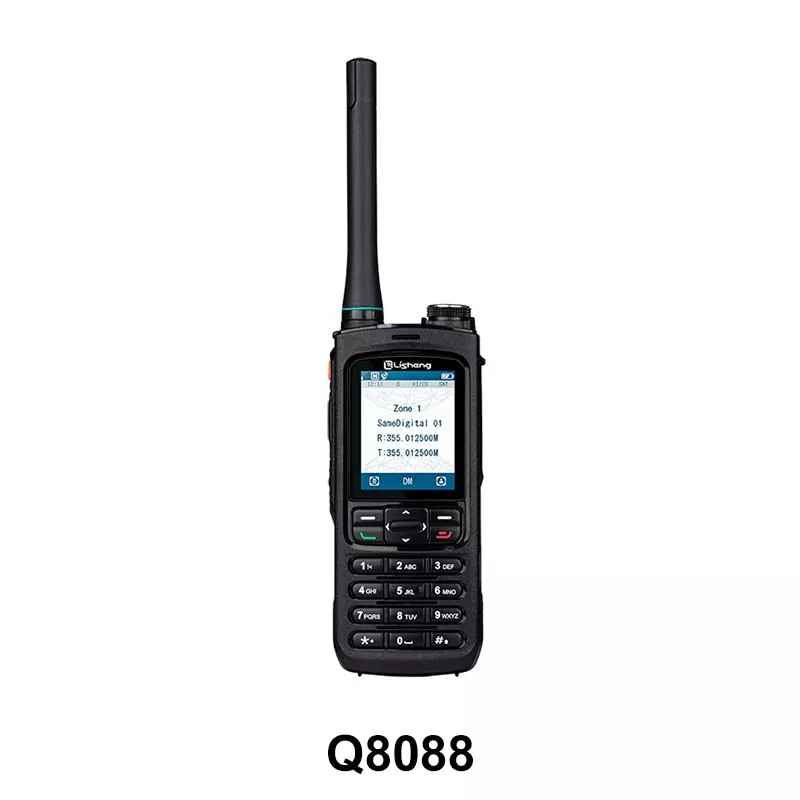

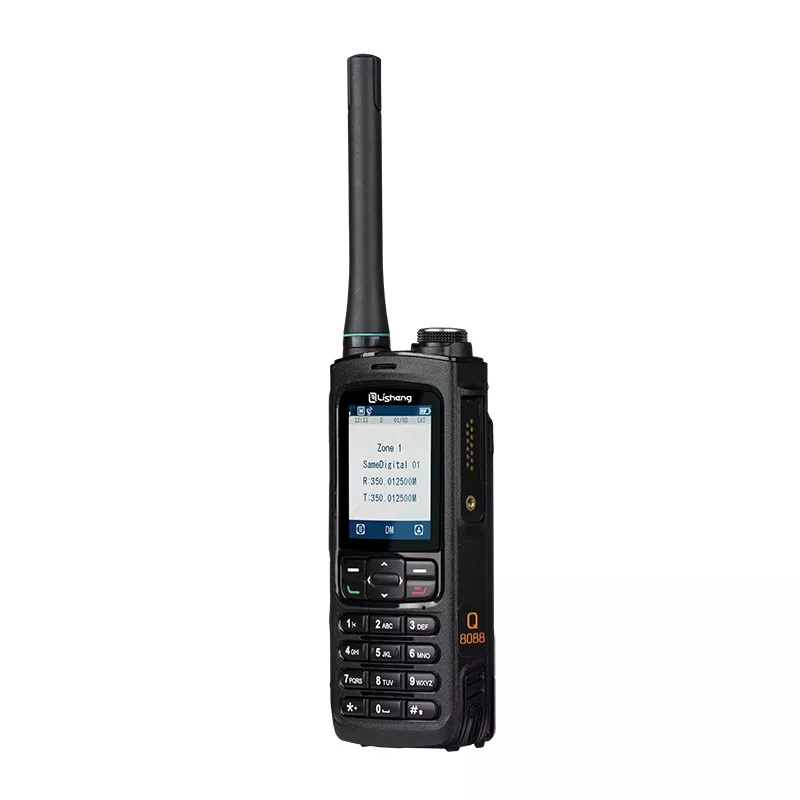

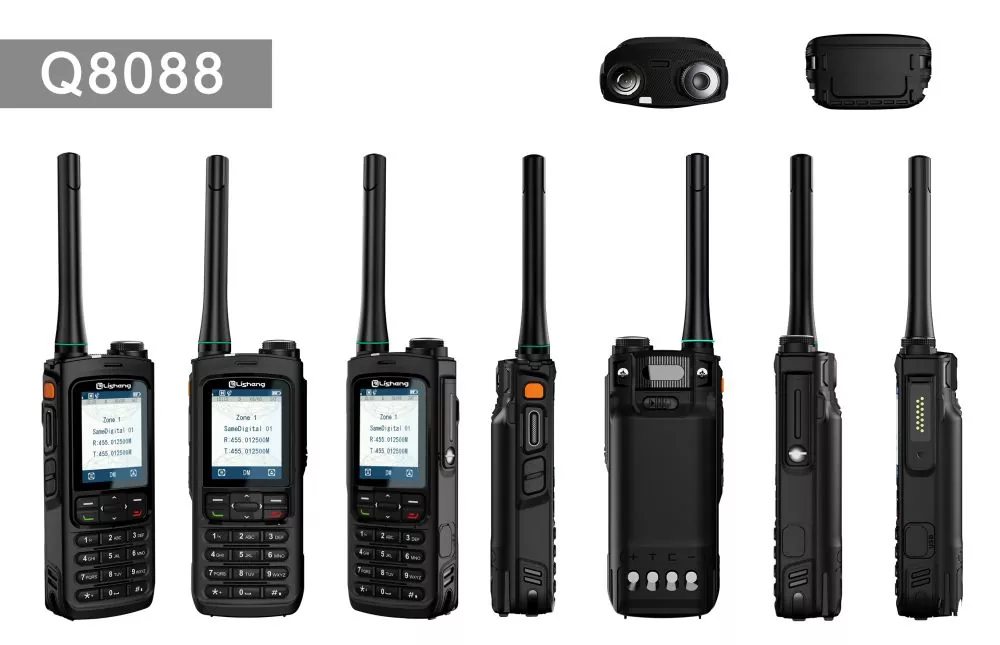

मोडेल:Q8088

सोधपुछ पठाउनुहोस्

उत्पादन विवरण

उत्पादन विशिष्टता:

सामान्य
आवृत्ति दायरा	136~174MHz, 350~400MHz 400~470MHz, 450~520MHz
च्यानल स्पेसिङ	6.25KHz(NXDN) / 12.5 KHz / 25 KHz
च्यानल/जोन क्षमता	2000 Channels / 64 Zones

सञ्चालन भोल्टेज	7.4V

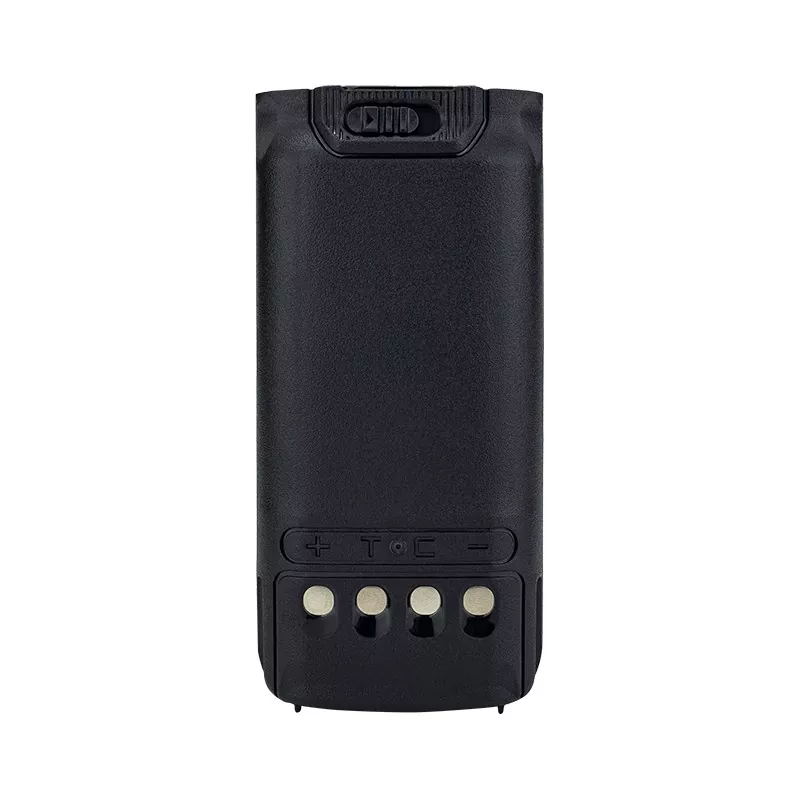

ब्याट्री क्षमता	2000mAh
ब्याट्री लाइफ (५/५/९०)	Analog/NXDN Mode: 10 Hours; DMR मोड: १२ घण्टा
भोकोडर प्रकार	AMBE+2
आवृत्ति स्थिरता	±1.0ppm
एन्टेना प्रतिबाधा	५०Ω
Dimensions (without Antenna)	5.27”H x 2.28”W x 1.26”D (134 x 58 x 32mm)
वजन	९.३८oz (२६६ ग्राम)
Ingress Protection (IP) Rating	IP68
रिसिभर
एनालग संवेदनशीलता	0.18μV (Typical) (12dB SINAD) 0.22μV (12dB SINAD) 0.30μV (20dB SINAD)
डिजिटल संवेदनशीलता	0.20μV (Typical) (BER 5%)
Adjacent Channel Selectivity	60dB @ 12.5KHz / 70dB @ 25KHz
Intermodulation Rejection	65dB @ 12.5KHz / 65dB @ 25KHz
अवरुद्ध गर्दै	90dB @ 12.5KHz / 90dB @ 25KHz
सह-च्यानल अस्वीकार	-12dB @ 12.5KHz -8dB @ 25KHz
Spurious Response Rejection	70dB @ 12.5KHz / 70dB @ 25KHz
रेटेड अडियो आउटपुट पावर	1.0W / 8Ω
Conducted Spurious Emission	<-57dBm (9KHz～1GHz) <-47dBm（1GHz～12.75GHz）
ट्रान्समिटर
आरएफ पावर	1W (निम्न) / ≤5W (उच्च)
पावर मार्जिन भिन्नता	+2/-3dB (under Extreme Conditions)
आवृत्ति त्रुटि	±1.0ppm
FSK त्रुटि	<2%
4FSK प्रसारण बिट त्रुटि दर (BER)	≤1×10-4
4FSK Modulation Frequency Deviation Error	≤10.0%
ओक्युप्ड ब्यान्डविथ (DMR)	≤8.5KHz
TX आक्रमण / रिलीज समय	≤१.५मि
आसन्न च्यानल पावर	≤-60dB @ 12.5KHz / ≤-70dB @ 25KHz
Transient Adjacent Channel Power	≤-50dB @ 12.5KHz / ≤-60dB @ 25KHz
एफएम मोड्युलेसन	4K00F1D @ 6.25KHz / 8K0F3E @ 12.5KHz / 16K0F3E @ 25KHz
4FSK डिजिटल मोड्युलेसन	12.5KHz（data only）：7K60FXD 12.5KHz（data＋voice）：7K60FXE
अडियो विकृति	≤3% @ 40% विचलन
अडियो प्रतिक्रिया	+1 ~ -3dB
एफएम हम र शोर	40dB @ 12.5KHz / 45dB @ 25KHz
नक्कली उत्सर्जन	≤-36dBm (9KHz～1GHz) ≤-३०dBm (1GHz~12.75GHz)

The above indicators are based on ETSI standard tests. Availability according to each national laws and regulations vary. Unless otherwise stated, all displaye specifications are typical specifications and may be changed at any time without notice.

उत्पादन विवरण:

· 2.0″ HD कलर डिस्प्ले

· VOX

· 3 Operating Modes: Normal/Trunking/Repeater

· Multiple Standard Protocols: NXDN/DMR

· DMR/NXDN टियर III

· भ्वाइस रेकर्डर सुसज्जित

· AES256 एन्क्रिप्टेड

· मानिस तल

· आपतकालीन अलार्म

· कम्पन ·

· IP68 Rated Waterproof & Dust-proof*

· GPS/Beidou/GLONASS Positioning (Optional)

· Bluetooth 4.2 Voice/Data Service (Optional)

हाम्रो निरीक्षण र प्याकिङ खण्ड:

we are committed to delivering top-quality two-way radio products, ensuring each product meets the highest standards through rigorous inspection and packaging processes. Our inspection and packaging team bears the responsibility of ensuring customers receive reliable products, providing a worry-free user experience.

निरीक्षण प्रक्रिया:

1、Visual Inspection: Each two-way radio undergoes a thorough visual inspection to ensure flawless aesthetics that align with the company's brand image.

2、Functionality Testing: Our inspection team conducts comprehensive functionality tests on every radio, ensuring all features operate correctly. This includes key functions such as audio quality, signal strength, and channel switching.

3、Durability Testing: Products undergo durability tests to ensure they function properly in various environmental conditions, including extreme temperatures, humidity, and vibrations.

4、Battery Performance Testing: Battery life is crucial for radio performance. Strict performance tests are conducted on batteries to ensure reliable, extended use.

प्याकेजिङ प्रक्रिया:

1、Anti-Static Packaging: Each radio undergoes anti-static packaging to prevent electrostatic damage during transportation.

2、Environmentally Friendly Packaging: Committed to sustainability, our packaging materials adhere to international environmental standards.

3、Shock-Resistant Packaging: Professional shock-resistant packaging is employed during transportation to prevent damage to products.

4、Integrity Check: The packaging team performs a final integrity check to ensure products remain intact and undamaged after the packaging process.

Our inspection and packaging processes aim to surpass customer expectations, ensuring that every two-way radio received has undergone rigorous testing and meticulous packaging as a high-quality product.
